CMYK vs sRGB: What Changes in One File, Measured in RetouchPi

sRGB is additive: red, green and blue light stack into a colour, 0 is black, 255 is full blast, and the numbers describe how much light a patch of screen emits. CMYK is subtractive: cyan, magenta, yellow and black inks absorb part of the light and the rest reflects into your eye, so the numbers describe how much ink a patch of paper carries. One describes emission, the other reflection, and between them sit paper white, ink order and dot gain - none of which exist on a screen.

So "CMYK 100,0,0,0" is not a colour; it is the instruction "lay full cyan". On coated stock it is one cyan, on newsprint another. sRGB (255,0,0) is likewise an instruction - "red channel wide open" - except sRGB pins the screen side down, which is why monitors roughly agree. Numbers are instructions, not colours. A colour only exists once model, medium and, when it matters, a profile are named together.

Because the gamuts are not the same size. The glowing saturated blues and greens of sRGB sit outside what four inks can reflect; a conversion has to settle for the nearest point inside, and the eye reads that as "duller". The reverse also happens: some deep ink colours sit outside sRGB's bright side. Loss runs both ways; neither model contains the other.

• Screens emit, paper reflects: change the room light and the paper side shifts while the screen side barely moves.
• Black differs: sRGB black is the absence of light, CMYK black is four inks stacked, and the shop separately decides how the black channel is generated.
• Paper white is not 255: stock white is usually dimmer and warmer than screen white, so the whole image starts from a different contrast floor.

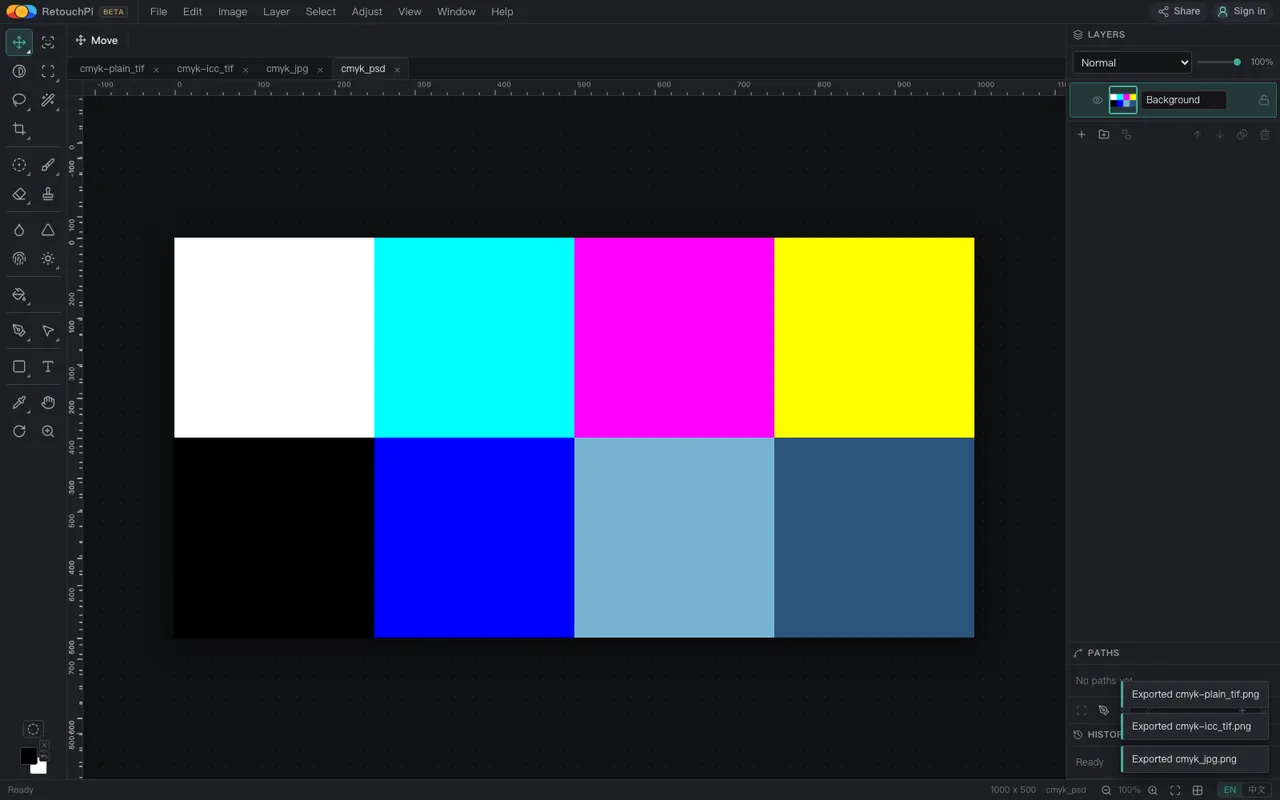

A browser canvas speaks only sRGB, so the moment a CMYK file arrives there is a conversion, whether anyone names it or not. This version runs the plain formula R = (255-C) x (255-K) / 255. The measurements fall into three bands: PSD and TIFF, decoded in-house, export eight patches identical to the formula, dE 0; a CMYK JPEG goes through the platform decoder and lands at most dE 0.65 away, a 1/255 rounding; and a PSD carrying an embedded RGB profile is a different animal - the profile is truly applied, matching the reference transform patch by patch, whereas reading the raw values as sRGB would be off by up to dE 18.8.

Put those three bands together and you have the whole honest version of "viewing CMYK in a browser": it is viewable, the conversion really happens, and on the plain-formula band the error is rounding scale. But it is not the press's answer, and a file carrying a CMYK profile is not computed through that profile here - an embedded CMYK profile is ignored entirely, byte-identical to the profile-less twin.

• Looking at the file at all: nothing else can be discussed if the original will not open. CMYK TIFF, PSD and JPEG all open in this version, in 254-261 ms.
• Measuring size and resolution: the status bar reports pixels and physical size, and cropping or framing calls are fine on an sRGB preview.
• A confirmation preview for a client or colleague: an sRGB PNG or PDF, labelled "screen preview, not a colour sign-off".
• Catching problems early: a file that opens garbled, mis-sized or with the wrong channel count is orders of magnitude cheaper to find here than at the shop.

The sign-off step is not here: the shop's paper proof is what counts. This version plates nothing, has no press-proofing step, and exports sRGB - treating a screen preview as a colour sign-off is the most common accident in this whole family.

• No claim of CMYK colour management in the browser: this version has no CMYK working mode, embedded CMYK profiles are ignored, and only RGB profiles on the PSD road are applied.
• No claim that dE 0 means "correct": dE 0 only says the result equals the plain formula, and the formula itself is not the press's answer.

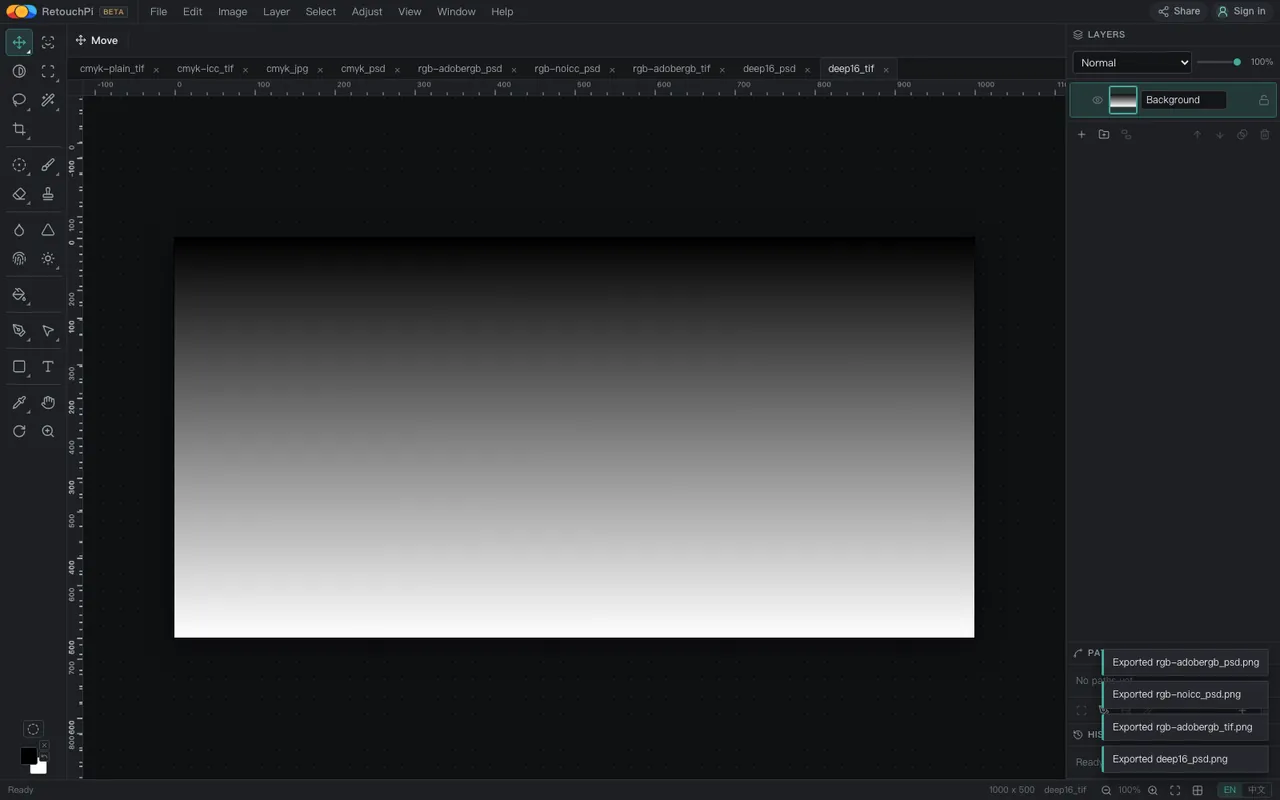

• No claim about bit depth: 16-bit files open but narrow to 8 bits on the way in; a deep-bit pipeline is not in this version.
